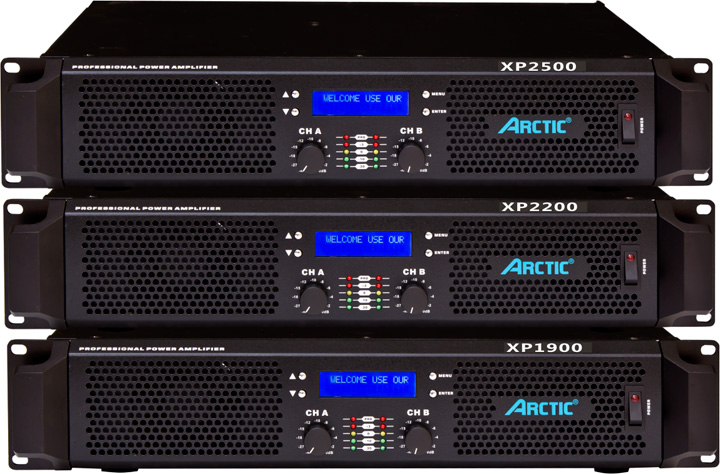

XP Series Features

*XP series power amplifier use efficient class H circuit and Single Chip Microcomputer. LCD display, with perfect function, safe, reliable and easy to operate.

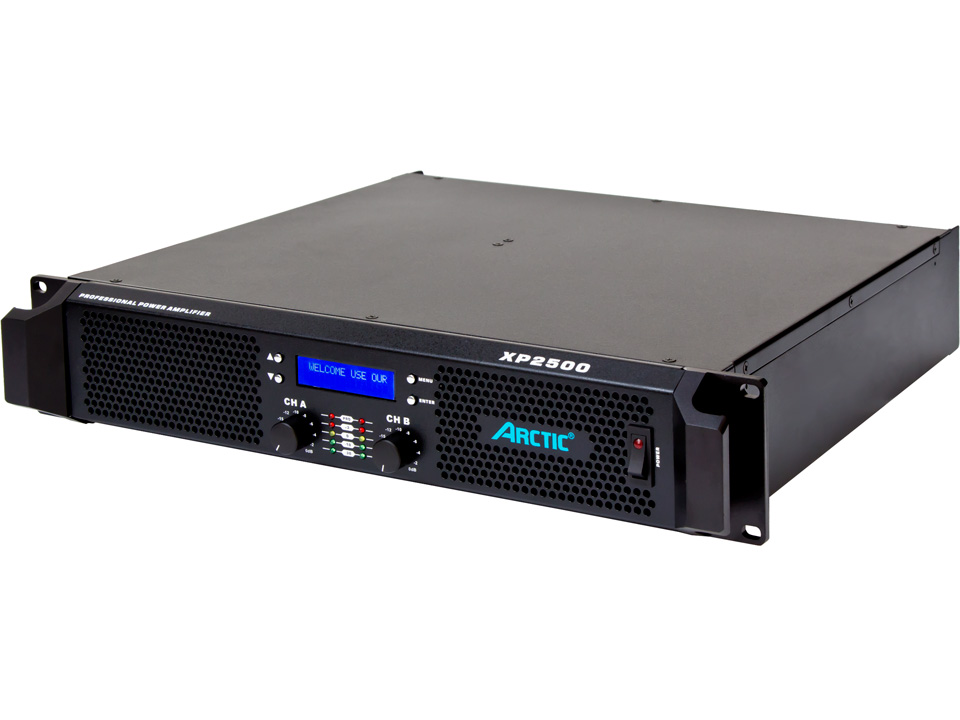

*By use LCD screen and 4 control buttons on the panel can set and indicate multiple working modes.
A. Set to working on STEREO, PARALLEL or BRIDGE output mode.
B. Choose input sensitivity: 0dB, +2.2dB or +5.4dB
C. Choose not cut the low frequence, or 30Hz low cut,  50Hz low cut.

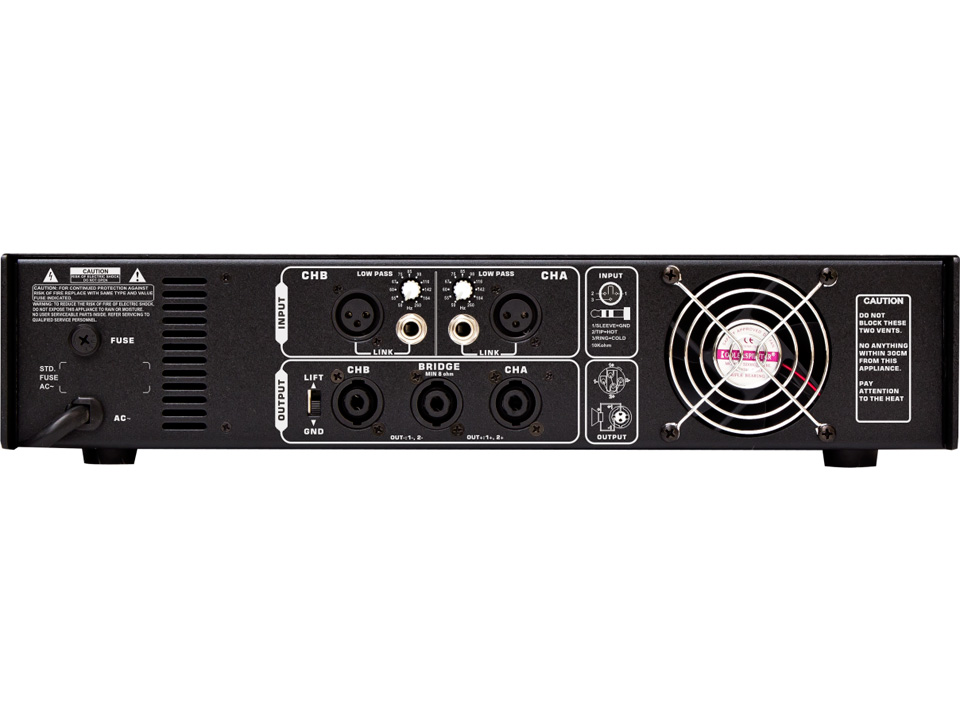

D. Selectable filter, this amplifier can be set to full-range amplifier, treble amplifier or bass amplifier. When the amplifier working as a bass amplifier, you can use the knob on the back panel to adjust the filter crossover point.
E. Can set password.
F. Show the temperature of the internal amplifier.
*2 row LED indicate the output level and limit, protection status.
*Startup delay, overload protection, short circuit protection, over temperature protection and load protection circuit.
*Has limit circuit, can protect the speaker from damage.

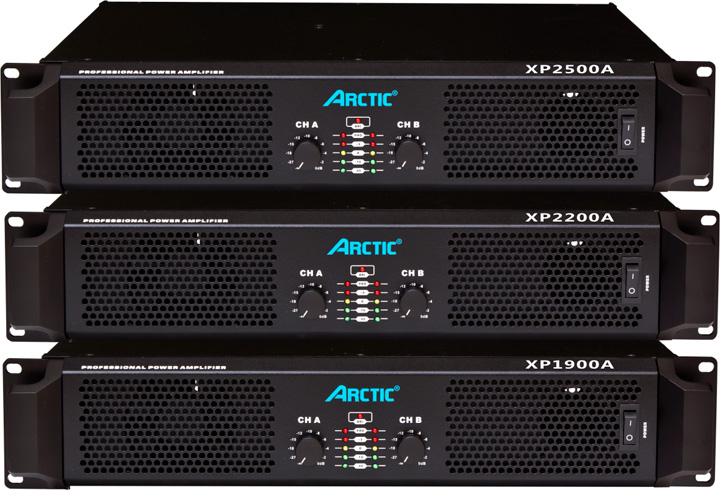

*XP-A  series is the simple Version of XP series, base on the XP series, it remove the function A,B,C,D,E,F. Other functions are the same.
