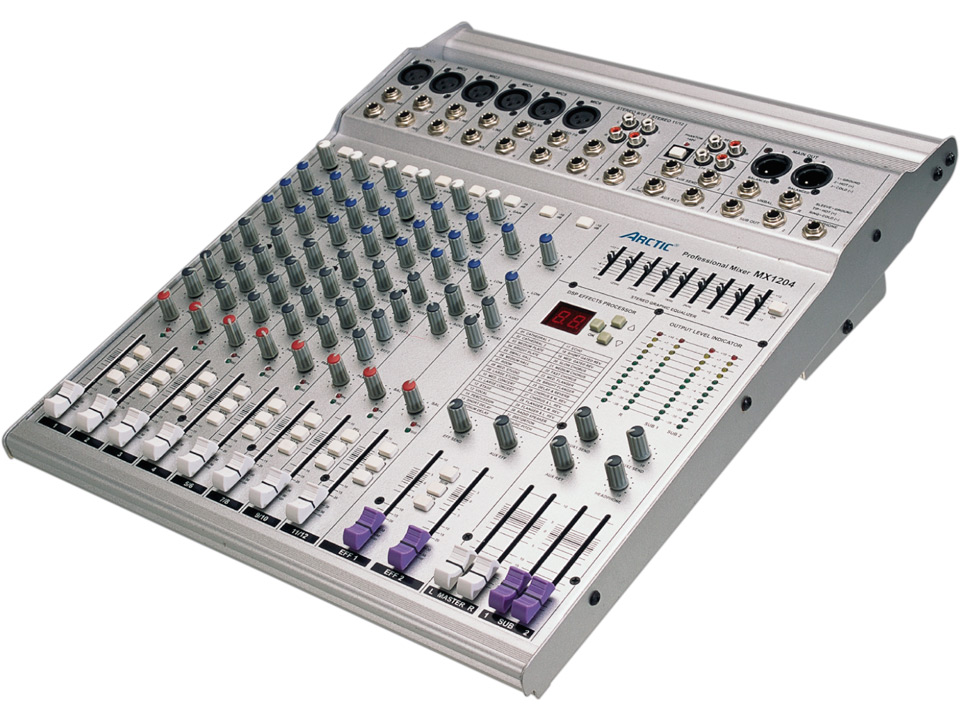

MX-4 Series Features

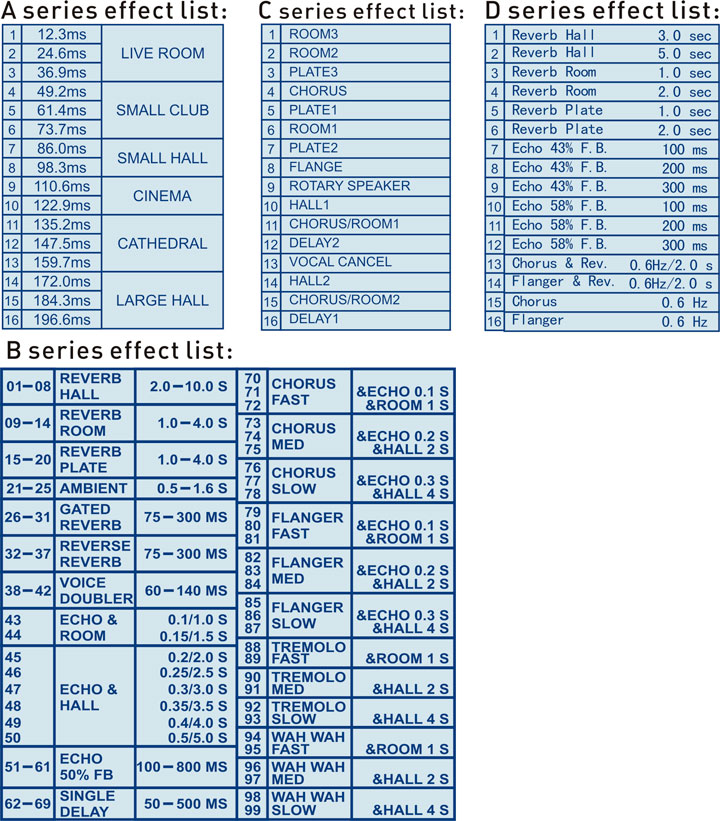

*The mixer can be equipped four different kinds of effector. And distinguished by the tail letter.
  A: digital effect processor with 16 kinds delay-effect;
  B:high-level DSP effect processor with 99 kinds of effects;
  C:middle-level DSP effect processor with 16 kinds of effects;
  D:high-level DSP effect processor with 16 kinds of effects;
*2~10 MONO input channels and 4 STEREO input channels (2 stereo input channels can also be used as MIC input channels).
*Signal and peak indicators on all input channels.
*INSERT function for each mono input channel, three-band equalizer for each microphone input channel.
*4 segment LED meters show the level of main out and group out separately balanced or unbalanced sockets can be selected for main out.
*2 AUX inputs, 2 AUX outputs and 1 stereo record outputs.
  A built-in 24 bits DSP stereo digital effector with 99 kinds of reverb effects.
*Nine-band stereo graphic equalizer: 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz, +/-12dB.
*Built-in +48V phantom power for condenser microphones
*Built-in power supply
*Max output level: +20dB/+26dB (balanced)
*Equivalent input noise of MIC input channel: -124dB
*Total harmonic distortion: <0.1%
*Frequency response: 20~20KHz +1/-2dB

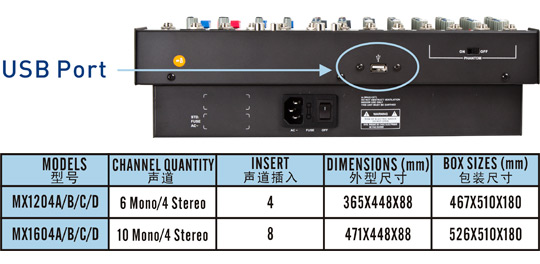

*All the models can be equipped a USB port connected to the computer
