MX-6 Series Features

*4~24 MONO input channels and 4 STEREO input channels (2 ST input channels can also be used as MIC input channels).
*Signal indicators and peak indicators on all input channels.
*Three-band equalizer for each input channel.
*INSERT function for each mono input channel.
*6-segment LED meters show the level of the master and 4 group outputs each other.
*Two kinds of sockets for main out can be selected, balanced or unbalanced.
*2 AUX inputs, 2 AUX outputs and 1 stereo record outputs.

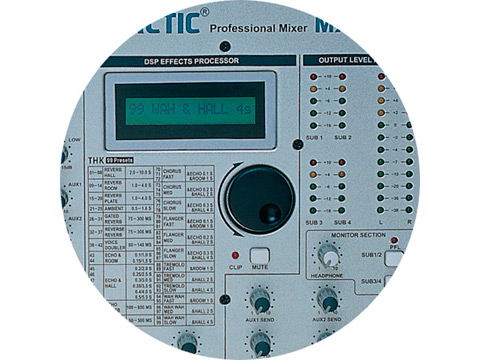

*Built-in 24 bit stereo DSP digital effects processor, MX-6D has 99 presets, LCD display.
*Built-in +48V phantom power for condenser microphones.
*Quick monitor, more check points can be selected, main out, group out or each input channel.
*Group output signal can be fed to the main buses.
*Built-in power supply.
*Max output level: +20dB/+26dB
*Equivalent input noise of microphone input channel: -124dB
*Total harmonic distortion: <0.1%
*Frequency response: 20~20KHz  +1/-2dB

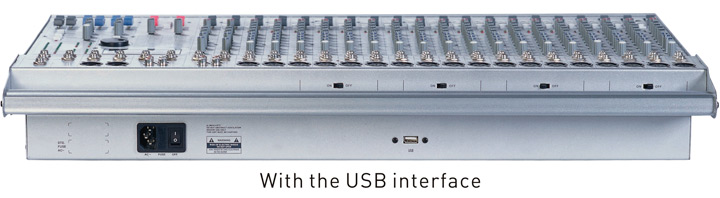

*The mixer can be equipped an inner USB audio interface, by this part the mixer has a 16bit/48KHz A/D & D/A conversion function and an USB data communication (communication rules with USB 1.1)function .Achieve the two-way exchange of PCM digital audio format between the computer and the mixer.
