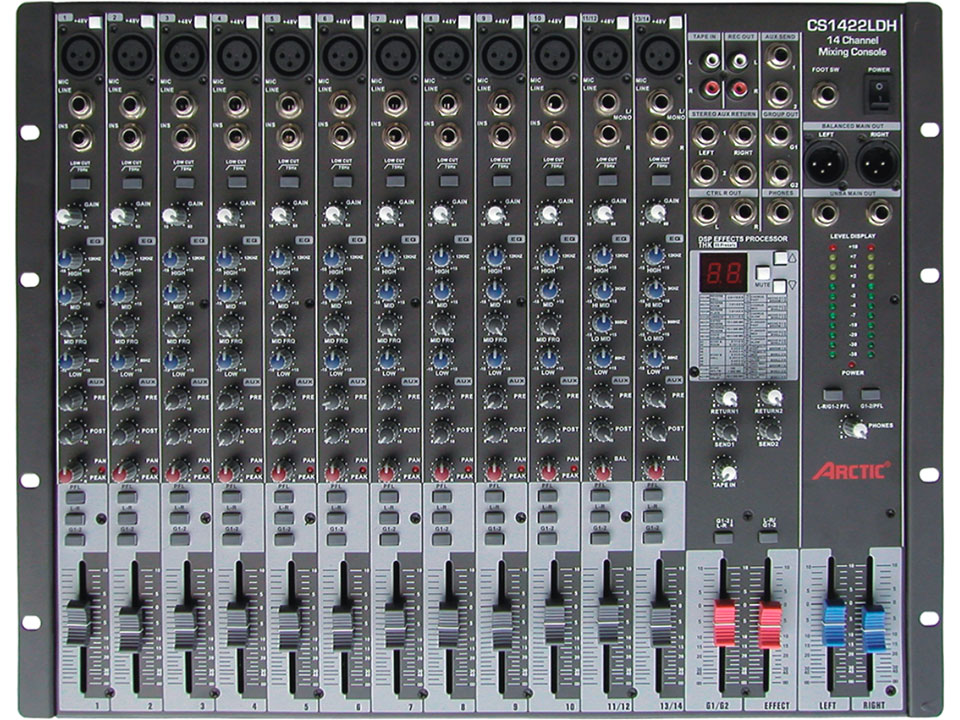

CS-L Series Features

* Low noise 14/10 channel Mic/Line mixer
* 10/6 mono inputs with XLR-sockets, +48V  Phantom-power and balanced line inputs
* 2 stereo line inputs with balanced 1/4 jack sockets
* Stereo inputs can also be operated mono
* 3-band EQ with semi-parametric mids for all mono inputs
* 4-band EQ for all stereo inputs
* Peak-LED and switchable low cut per mono input
* 2 Aux-Send(pre/post)per channel for controlling external  effectors and for monitoring
* 2 stereo Aux-Return with balanced 1/4 jack sockets
* CS1022LD/CS1422LDH have Built-in DSP effect processor with 99 kinds of effects
  CS1422L has Built-in DSP effect processor with 16 kinds of effects
* LDH series Foot Switch jack for controlling the DSP effector
* DSP effector can be inserted to main mixing channel  or group mixing channel
* Group out signal also can be a aux line, at last be   feed to main channel
* This mixer can be equipped an inner USB audio interface,  by this part, the mixer has a 16bit/48KHz A/D & D/A   conversion function and an USB data communication function. Achieve the  two way exchange of PCM digital audio format between a  computer and this mixer
* XLR sockets for balanced main out and 1/4" phone jacks  for unbalanced main out
* 2 Balanced group outputs
* stereo balanced Control Room output for live monitoring
* stereo headphone outputs
* Stereo TAPE IN for recorder or CD playback or  link to sub-mixer
* Record output
* Precise 2x12 LED meter check multi-point real level
* 60mm high quality faders
*All the models can be equipped a USB port connected to the computer

*99 presets DSP effect please see List B ; 16 presets DSP effect  please see List C
