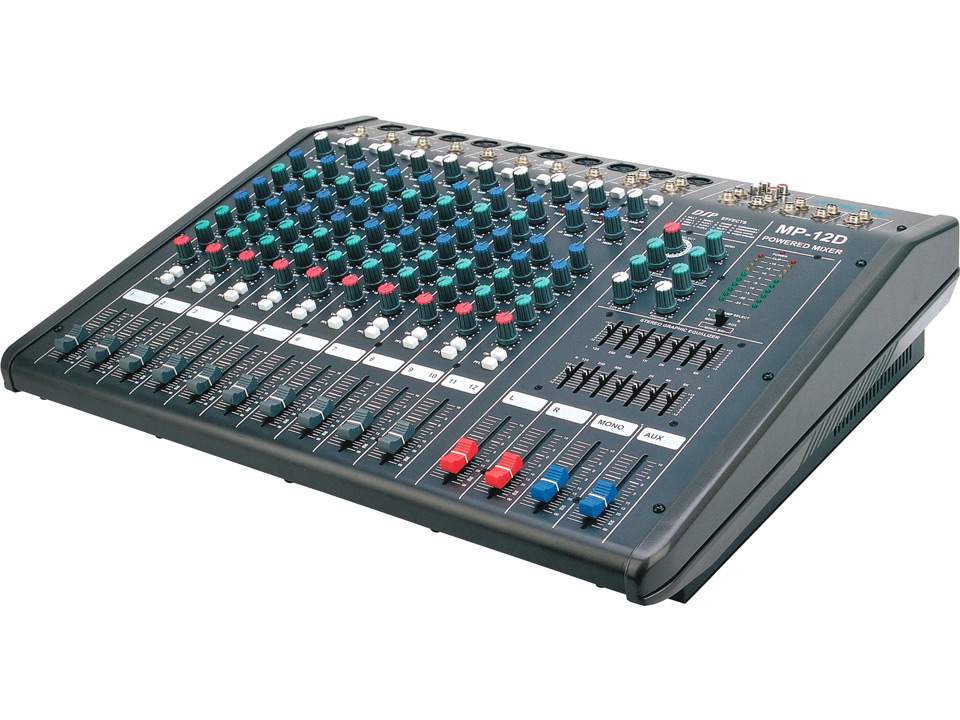

MP Series Features

*There are four varieties in this series, MP-8, MP-8D, MP-12, MP-10D and MP-12D. They can provide 4 or 8 MONO input channels and 2 stereo line input channels separately. Every of them has a power amplifier inside which can offer different power.
*MONO MIC input, XLR balanced, rated input level range -60dB~-14dB.
  MONO LINE input, 1/4' JK balanced, rated input level range -36dB ~ +10dB.
*+48V phantom power.
*All of the MONO inputs provide three-band frequency equalizer. And a MID FRQ to control the center  frequency on MONO inputs.
*All of the MONO inputs provide two AUX out controller.
*Each of the two stereo input channels is provided with L/MONO and R phone jacks, allow you to input MONO or ST signals. This two input units also provide input sensitivities selecting, two-band equalization and AUX1 output controlling.
*Each of the input channels provide a switch "ON" which turn on/off the channel, and provide another switch "PFL" which allows feeding channel signal into PFL bus.
*Two AUX return systems can be used for input interfaces of a effect outside or for stereo source inputs.
*TAPE IN and REC OUT jacks are provided for recorder playback and recording.
*A seven-band graphic equalizer is provided in the stereo out stage, allowing equalization of the overall output for sound field compensation or feedback prevention.
*Stereo power amplifier inside, it is convenience and shortcut to use.
  MX-8D, MP-10D and MX-12D have a POWER AMP SELECT
